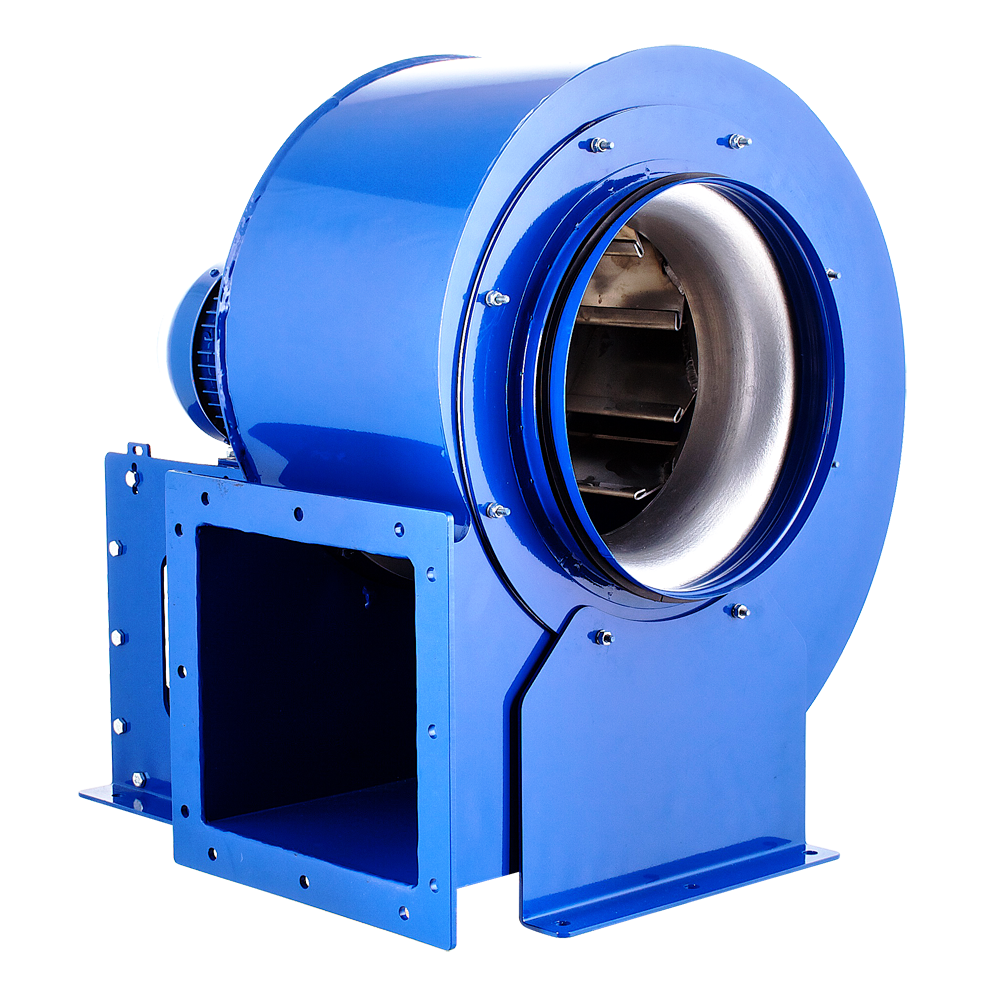

MSBN - Radialfläkt

MSBN

Radialfläkt

Radialfläktar av plåt, konstruerade för förorenad luft. Upp till 48.500m3/h, 6.900Pa, 55kW.
Möjligheten att måla
i en annan färg än standard
Kontakta oss

APPLICATION

Fans designed for dusty air transport systems. Typical applications:



  • pneumatic transport,
  • blowing in drying systems (e.g. graphic machines, processing plastics),
  • air blowing systems in combustion / thermal treatment systems (e.g. melting furnaces),
  • for air transport in ventilation systems and technological lines,
  • dust-laden air extraction

CONSTRUCTION

  • medium-pressure radial fan with direct drive
  • aluminum or steel impeller with backward curved blades, dynamically balanced according to ISO 1940-1
  • housing is welded from steel sheet
  • fan painted blue RAL 5010 (corrosivity category C3)
  • maximum temperature of the transported medium 80°C
  • motor ambient temperature from -20°C to + 40°C
  • figure LG270

MOTOR

  • asynchronous 3-phase 230/400V, 50Hz or 400/690V, 50Hz
  • degree of protection IP55
  • insulation class F
  • adapted to frequency regulation
  • motor ambient temperature from -20°C to +40°C

SPECIAL EXECUTIONS

  • optional configuration LG/RD
  • color other than standard
  • painting in higher category of corrosivity
  • housing and support made of galvanized steel sheet
  • housing and support made of stainless steel 1.4301
  • housing and support made of acid-proof steel 1.4404
  • motor with voltage and frequency of power different than standard
  • motor with other than standard degree of protection
  • motor equipped with sensors or additional cooling
  • sealing between the housing and the motor
  • ambient temperature range below -20°C and above +40°C
  • for transporting a medium with a temperature below -20°C and above +80°C

Teknisk support

Välj en fläkt www.fanselectoronline.com

m3/h
Pa

Arbetsegenskaper

Dimensioner

Typ A B C E F S T X M1 N1
  mm mm mm mm mm mm mm mm mm mm
MSBN-2-355/50-150T 549 646 535 252 390 167 157 10 50 40
MSBN-4-355/50-055T 549 646 469 252 390 167 157 10 50 40
MSBN-2-355/71-220T 549 646 557 252 390 167 168 10 40 40
MSBN-4-355/71-055T 549 646 511 252 390 167 168 10 40 40
MSBN-2-355/100-220T 549 646 622 252 390 167 182 12 40 40
MSBN-4-355/100-055T 549 646 556 252 390 167 182 12 40 40
MSBN-2-400/56-300T 606 728 598 272 440 189 167 10 35 40
MSBN-4-400/56-075T 606 728 525 272 440 189 167 10 35 40
MSBN-2-400/80-400T 606 728 634 272 440 189 179 12 40 40
MSBN-4-400/94-110T 706 857 614 309 510 206 178 12 45 40
MSBN-2-400/112-550T 606 728 718 272 440 198 195 12 40 40
MSBN-4-400/112-150T 606 728 718 272 440 198 195 12 40 40
MSBN-2-450/63-550T 697 813 691 322 490 208 185 14 50 50
MSBN-4-450/63-220T 697 813 570 322 490 208 185 14 50 50
MSBN-2-450/90-550T 697 813 718 322 490 208 198 14 50 50
MSBN-4-450/90-220T 697 813 597 322 490 208 198 14 50 50
MSBN-2-450/125-750T 697 813 754 322 490 208 216 14 50 50
MSBN-2-450/125-1100T 697 813 876 322 490 208 216 14 50 50
MSBN-4-450/125-300T 697 813 691 322 490 208 216 14 50 50
MSBN-2-500/71-1100T 767 902 883 352 545 231 233 14 80 50
MSBN-4-500/71-400T 767 902 707 352 545 231 233 14 80 50
MSBN-2-500/100-1100T 767 902 911 352 545 231 247 14 80 50
MSBN-4-500/100-400T 767 902 736 352 545 231 247 14 80 50
MSBN-2-500/140-1500T 767 902 951 352 545 231 267 14 80 50
MSBN-4-500/140-550T 767 902 866 352 545 231 267 14 80 50
MSBN-4-630/90-400T 974 1108 782 452 660 264 272 16 80 50
MSBN-6-630/90-220T 974 1108 818 452 660 264 289 16 80 50
MSBN-4-630/125-550T 974 1108 899 452 660 264 289 16 80 50
MSBN-6-630/125-220T 974 1108 818 452 660 264 289 16 80 50
MSBN-4-630/180-750T 974 1108 954 452 660 264 317 16 80 50
MSBN-6-630/180-300T 974 1108 954 452 660 264 317 16 80 50
MSBN-2-710/95-5500T 1008 1269 1208 426 770 712 415 17 50 50
MSBN-4-710/100-750T 1061 1274 897 474 770 570 324 302 80 40
MSBN-4-710/140-750T 1061 1274 940 474 770 324 302 16 80 40
MSBN-6-710/140-300T 1061 1274 940 474 770 324 302 16 80 40
MSBN-4-710/200-1100T 1061 1196 1086 474 770 324 332 16 80 40
MSBN-4-900/125-2200T 1395 1558 1145 652 930 364 326 24 60 50
MSBN-6-900/125-750T 1395 1558 1085 652 930 364 326 24 60 50
MSBN-4-900/180-3000T 1395 1558 1326 652 930 364 326 24 60 50
MSBN-6-900/180-1100T 1395 1558 1140 652 930 364 353 24 60 50
MSBN-4-900/250-3000T 1395 1558 1270 652 930 364 388 24 60 50
MSBN-6-900/250-1100T 1395 1558 1210 652 930 364 353 24 60 50
Typ N2 N3 N4 N5 N6 N7 N8 P1
  mm mm mm mm mm mm mm mm
MSBN-2-355/50-150T 150 260 300 407 516 541 561 230
MSBN-4-355/50-055T 150 260 600 407 516 541 561 230
MSBN-2-355/71-220T 150 260 300 418 545 562 582 230
MSBN-4-355/71-055T 150 260 300 407 545 562 582 230
MSBN-2-355/100-220T 150 260 300 407 516 591 611 230
MSBN-4-355/100-055T 150 260 300 432 574 591 611 230
MSBN-2-400/56-300T 175 310 350 470 600 617 637 270
MSBN-4-400/56-075T 175 310 350 470 600 617 637 270
MSBN-2-400/80-400T 175 310 350 482 624 641 661 270
MSBN-4-400/94-110T 175 310 350 480 613 638 658 270
MSBN-2-400/112-550T 175 310 350 498 656 673 693 270
MSBN-4-400/112-150T 175 310 350 498 656 673 693 270
MSBN-2-450/63-550T 225 400 450 586 732 752 772 340
MSBN-4-450/63-220T 225 400 450 586 732 752 772 340
MSBN-2-450/90-550T 225 400 450 599 759 779 799 349
MSBN-4-450/90-220T 225 400 450 599 759 779 799 340
MSBN-2-450/125-750T 225 400 450 617 794 814 834 340
MSBN-2-450/125-1100T 225 400 450 617 794 814 834 340
MSBN-4-450/125-300T 225 400 450 617 794 814 834 340
MSBN-2-500/71-1100T 225 400 450 602 765 785 805 340
MSBN-4-500/71-400T 225 400 450 602 765 785 805 340
MSBN-2-500/100-1100T 225 400 450 617 794 814 834 340
MSBN-4-500/100-400T 225 400 450 617 794 814 834 340
MSBN-2-500/140-1500T 225 400 450 637 834 854 874 340
MSBN-4-500/140-550T 225 400 450 637 834 854 874 340
MSBN-4-630/90-400T 225 400 450 639 838 854 878 400
MSBN-6-630/90-220T 225 400 450 657 874 894 914 400
MSBN-4-630/125-550T 225 400 450 657 874 894 914 400
MSBN-6-630/125-220T 225 400 450 657 874 894 914 400
MSBN-4-630/180-750T 225 400 450 684 928 968 400 450
MSBN-6-630/180-300T 225 400 450 684 928 968 400 450
MSBN-2-710/95-5500T 400 750 800 977 1163 1181 1201 612
MSBN-4-710/100-750T 225 410 450 659 869 896 914 480
MSBN-4-710/140-750T 225 410 450 679 916 935 954 480
MSBN-6-710/140-300T 225 410 450 679 916 935 954 480
MSBN-4-710/200-1100T 225 410 450 709 969 996 1014 480
MSBN-4-900/125-2200T 300 550 600 864 1129 1159 1179 500
MSBN-6-900/125-750T 300 550 600 864 1129 1284 1304 500
MSBN-4-900/180-3000T 300 550 600 891 1184 1214 1234 500
MSBN-6-900/180-1100T 300 550 600 891 1184 1214 1234 500
MSBN-4-900/250-3000T 300 550 600 926 1254 1284 1304 500
MSBN-6-900/250-1100T 300 550 600 891 1184 1214 1234 500
Typ P2 P3 X2 X3 ØD ØO ØO2 ØO3
  mm mm mm mm mm mm mm mm
MSBN-2-355/50-150T 280 320 6 3 315 10 12 12
MSBN-4-355/50-055T 280 320 6 3 315 10 12 12
MSBN-2-355/71-220T 280 320 6 3 315 10 12 12
MSBN-4-355/71-055T 320 320 6 3 315 10 12 12
MSBN-2-355/100-220T 280 320 6 3 315 10 12 12
MSBN-4-355/100-055T 280 320 6 3 315 10 12 12
MSBN-2-400/56-300T 320 360 6 3 355 10 12 12
MSBN-4-400/56-075T 320 360 6 3 355 10 12 12
MSBN-2-400/80-400T 320 360 6 3 355 10 12 12
MSBN-4-400/94-110T 320 360 6 3 355 10 12 12
MSBN-2-400/112-550T 320 360 6 3 355 10 12 12
MSBN-4-400/112-150T 360 360 6 3 355 10 12 12
MSBN-2-450/63-550T 400 440 6 3 400 12 16 16
MSBN-4-450/63-220T 400 440 6 3 400 12 16 16
MSBN-2-450/90-550T 400 440 6 3 400 12 16 16
MSBN-4-450/90-220T 400 440 6 3 400 12 16 16
MSBN-2-450/125-750T 400 440 6 3 400 12 16 16
MSBN-2-450/125-1100T 400 440 6 3 400 12 16 16
MSBN-4-450/125-300T 440 440 6 3 400 12 16 16
MSBN-2-500/71-1100T 440 440 6 3 450 12 16 16
MSBN-4-500/71-400T 440 440 6 3 450 12 16 16
MSBN-2-500/100-1100T 440 440 6 3 450 12 16 16
MSBN-4-500/100-400T 440 440 6 3 450 12 16 16
MSBN-2-500/140-1500T 440 440 6 3 450 12 16 16
MSBN-4-500/140-550T 440 440 6 3 450 12 16 16
MSBN-4-630/90-400T 500 500 6 3 560 12 16 16
MSBN-6-630/90-220T 500 500 6 3 560 12 16 16
MSBN-4-630/125-550T 500 500 6 3 560 12 16 16
MSBN-6-630/125-220T 500 500 6 3 560 12 16 16
MSBN-4-630/180-750T 500 500 6 3 560 12 16 16
MSBN-6-630/180-300T 500 500 6 3 560 12 16 16
MSBN-2-710/95-5500T 672 712 6 3 520 14 18 18
MSBN-4-710/100-750T 530 570 12 3 630 16 6 12
MSBN-4-710/140-750T 530 570 6 3 630 12 12 12
MSBN-6-710/140-300T 530 570 6 3 630 12 12 12
MSBN-4-710/200-1100T 530 570 6 3 630 12 12 12
MSBN-4-900/125-2200T 560 600 6 3 800 15 16 16
MSBN-6-900/125-750T 560 600 6 3 800 15 16 16
MSBN-4-900/180-3000T 560 600 6 3 800 15 16 16
MSBN-6-900/180-1100T 560 600 6 3 800 15 16 16
MSBN-4-900/250-3000T 560 600 6 3 800 15 16 16
MSBN-6-900/250-1100T 560 600 6 3 800 15 16 16
